商品の詳細:
|

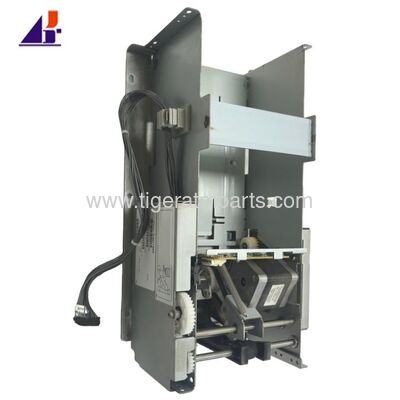

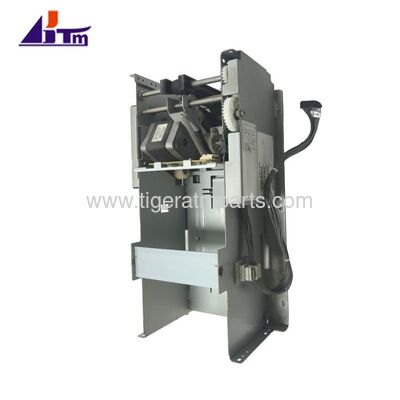

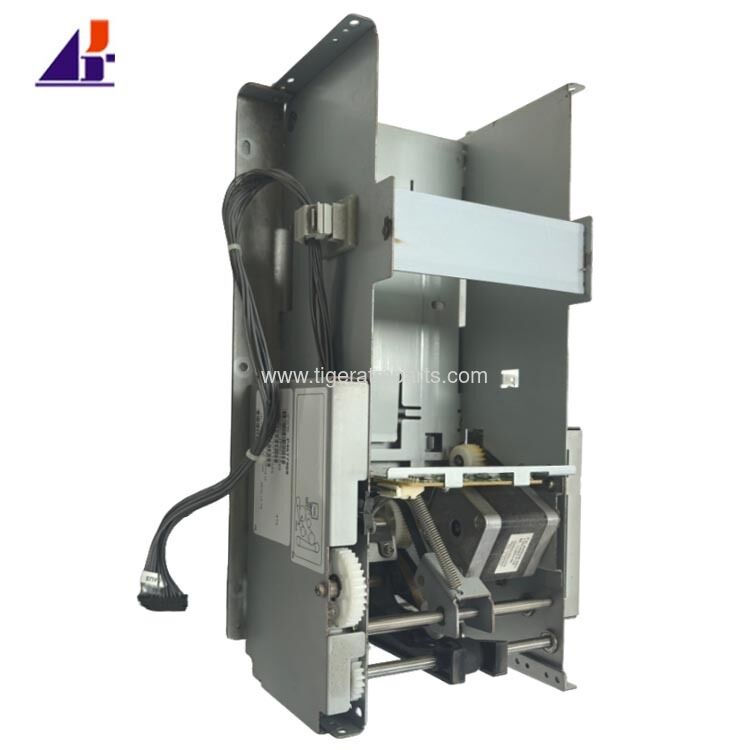

| モデル番号: | KD03236-C003 | 製品名: | F53 F56 下部ユニット |
|---|---|---|---|
| MOQ: | 1台 | 用途: | フジツゥー F53/F56 ディスペンサー |
| 状態: | 新しい | ブランド: | 富士通 |
| ハイライト: | Fujitsu ATM dispenser lower unit,Fujitsu F53 F56 dispenser parts,KD03234-C900 ATM machine parts |
||
| Item | Details |
|---|---|
| Part Number | KD03234‑C900 |
| Compatibility | Fujitsu F53 Dispenser, Fujitsu F56 Dispenser |
| Unit Type | Dispenser Lower Base / Cassette Mounting Unit |
| Max Cassette Support | 5 cash cassettes (multi‑denomination) |
| Core Function | Mechanical base, drive assembly, cassette housing |
| Material | High‑strength metal frame + engineering plastic |
| Condition | New Original |
| Application | ATM, Currency Exchange Kiosk, Gaming Terminal, Self‑Service Kiosk |
| Service Access | Front‑side maintenance compatible |
| Compatibility Notes | Direct replacement for F53/F56 dispenser lower assemblies |
| Part Number | Part Name |
|---|---|
| KD02881-D300 | Lower Unit ASSY |
| KD02881-E300 | Lower Frame ASSSY |
| CA02953-3100 | Timing Belt |
| KD02881-E200 | Pulley 44 ASSY |
| CA80409-0181 | Bearing |
| F6-ER4-S | Retaining Ring E |
| CA82204-2012 | Pin |
| KD02881-Y150 | Gear 44 |
| KD02881-E210 | Pulley 34 ASSY |
| CA80409-0181 | Bearing |
| F6-ER4-S | Retaining Ring E |
| CA82204-2018 | Pin |
| KD02881-Y360 | Gear34-26 |
| F6-ER6-S | Retaining Ring E |
| KD02881-D070 | Guide ASSY |
| KD02881-Y070 | Guide |
| KD02881-Y071 | Guide |
| KD02881-Y280 | Shaft 1 |
| D860-6107-W829 | Pulley |
| F6-ER4-S | Retaining Ring E |
| CA82218-0153 | Flat belt |
| F6-SW2N3-06121 | Screw |
| KD02881-Y280 | Shaft 1 |
| CA82218-0193 | Flat belt |
| F6-SW2N3-06121 | Screw |
| D860-6107-W829 | Pulley |
| KD02881-E365 | Pulley ASSY |
| CA80409-0162 | Bearing |
| F6-ER4-S | Retaining Ring E |
| KD02881-Y366 | Gear 20 |
| CA82204-2012 | Pin |
| KD02881-Y325 | Shaft |
| KD02881-D310 | Tension ASSY |
| KD02881-E310 | Tension ASSY |
| D860-6178-X340 | Roller |
| F6-ER3-S | Retaining Ring E |
| F6-SW2N3-06121 | Screw |
| F6-ER4-S | Retaining Ring E |
| CA81003-0603 | Spring |
| KD02881-Y330 | Passway |
| KD02881-Y331 | Passway |
| F6-ER4-S | Retaining Ring E |
| KD02881-D260 | Sensor ASSY |
| KD02881-Y260 | Sensor Bracket |
| KD02901-1151 | Sensor |
| KD02901-1152 | Sensor |
| F6-SW2N3-06121 | Screw |
| F6-SW2N3-06121 | Screw |
| KD02881-D350 | Motor 3 ASSY |
| KD02881-E350 | Motor 3 Bracket ASSY |
| KD55026-4001 | Stepping Motor |
| F6-SW2N3-06121 | Screw |
| KD02881-D270 | Gear ASSY |
| KD02881-E270 | Bracket ASSY |
| KD02881-E410 | Gear Pulley |
| F6-ER4-S | Retaining Ring E |
| F6-ER4-S | Retaining Ring E |
| CA02953-3084 | Timing belt |
| F6-SW2N3-06121 | Screw |
| KD02901-1165 | Lead Switch |
| KD02901-1316 | Upset bolt |
| KD02881-Y370 | Bracket F |
| F6-SW2N3-06121 | Screw |
| KD02881-Y380 | Gear32 |
| F6-ER6-S | Retaining Ring E |
| KD02881-Y265 | Bracket |
| F6-SW2N3-06121 | Screw |
| KD49006-L062 | Photo sensor |
| KD02881-G003 | Cable ASSY |
| KD02881-Y004 | Label |
| KD91001-Y693 | Label |
| KD02881-Y375 | Cover |
| F6-SW2N3-06121 | Screw |
| KD02881-Y376 | Cover |
| F6-SW2N3-06121 | Screw |
| CA81001-0022 | Cord keep |
| CA81001-0023 | Cord keep |
| KD02961-L314 | CKN Cramp |
| CA82003-0961 | Edge saddle |
| CA82003-0950 | Mini cramp |
| CA81003-0654 | Spring |
