KD03235-B334 KD03235-C324 Fujitsu ATM Bank Machine F53 F56 Dispenser With 1K Cassette

KD03235-B334 KD03235-C324 Fujitsu ATM Bank Machine F53 F56 Dispenser With 1K Cassette
KD03235-B334 KD03235-C324 Fujitsu ATM Bank Machine F53 F56 Dispenser With 1K Cassette KD03235-B334 KD03235-C324 Fujitsu ATM Bank Machine F53 F56 Dispenser With 1K Cassette KD03235-B334 KD03235-C324 Fujitsu ATM Bank Machine F53 F56 Dispenser With 1K Cassette

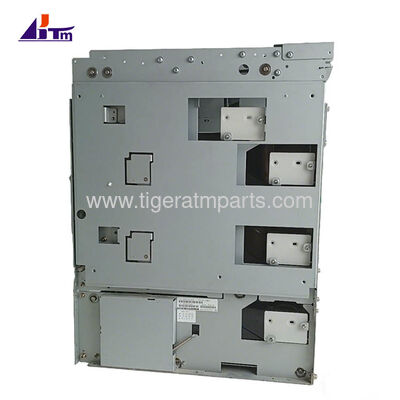

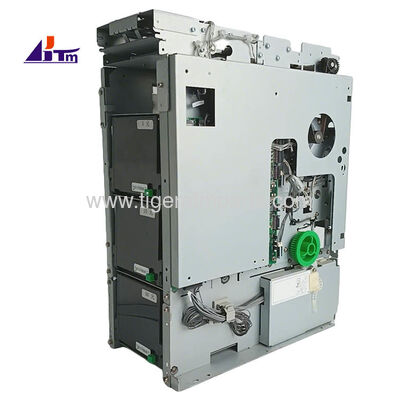

大画像 :  KD03235-B334 KD03235-C324 Fujitsu ATM Bank Machine F53 F56 Dispenser With 1K Cassette

商品の詳細:
起源の場所: 中国
ブランド名: Fujitsu
証明: ISO9001
モデル番号: KD03235-B334、KD03235-C324
お支払配送条件:
最小注文数量: 1台
価格: Contact us
パッケージの詳細: カートン/パレット
受渡し時間: 1-7 作業中
支払条件: T/T
供給の能力: 年間100,000台

KD03235-B334 KD03235-C324 Fujitsu ATM Bank Machine F53 F56 Dispenser With 1K Cassette

説明
部品番号: KD03235-B334、KD03235-C324 モデル番号: F53
説明: F53 F56 1Kカセットの配送機 ブランド: フジツー
品質: 100%テスト済み 保証: 90日
ハイライト:

Fujitsu ATM bank machine dispenser

,

Fujitsu F53 F56 ATM dispenser

,

Fujitsu ATM dispenser with cassette

KD03235-B334 KD03235-C324 Fujitsu ATM Bank Machine F53 F56 Dispenser With 1K Cassette
Model Numbers: KD03235-B334, KD03235-C324, F53, F56
Core Configuration: 1K Cash Cassette
Product Overview

The Fujitsu F53 & F56 Cash Dispenser with 1K Cassette is a high-performance, compact cash handling core module designed for global self-service equipment applications. Engineered with Fujitsu's legendary reliability, this dispenser features flexible cassette configuration, fast cash dispensing speed and easy system integration. It is the ideal core component for all types of cash-based self-service terminals, and we provide one-stop supply of the dispenser and all matching consumables to meet your full-cycle maintenance and replacement needs.

Key Application Scenarios

This dispenser is widely compatible with various self-service equipment, covering financial, retail, public service and other industries:

  • Financial Self-service: ATM / Cash Deposit and Withdrawal Machines, Foreign Currency Exchange Machines, Bill Self-service Machines
  • Retail & Catering: Self-checkout Terminals, Retail Self-service Payment Terminals
  • Public Service: Self-service Ticket Vending Machines, Utility Bill Payment Terminals, Recharge Terminals
Product Core Specifications
Model No. KD03235-B334/KD03235-C324
Model Fujitsu F53 / Fujitsu F56
Cassette Configuration Standard 2 cassettes, expandable to 6
Dispensing Speed 2 notes/second
Dimensions (W×D×H) 160mm×351mm×330mm (2 cassettes)
Interface RS232C (standard), USB (optional)
Service Access Front/Rear
Reject Bill Capacity 20 bills
KD03235-B334 KD03235-C324 Fujitsu ATM Bank Machine F53 F56 Dispenser With 1K Cassette 0 KD03235-B334 KD03235-C324 Fujitsu ATM Bank Machine F53 F56 Dispenser With 1K Cassette 1
Our Supply Advantages
Complete Product Categories & Quality Grades

We supply the full range of cash handling equipment and spare parts, including ATMs, cashflow bill acceptors, money sorters, bill counters, card printers, POS terminals and various cash handling modules. All products are available in 4 quality grades: brand new original, refurbished, compatible and used, to meet your different budget and application requirements.

Global Brand Cooperation & One-stop Supply

We are the authorized supplier of world-renowned cash handling brands, covering NCR, Diebold Nixdorf, Wincor, Glory, NMD, GRG, Fujitsu, Hyosung, Hitachi, Genmega, OKI, Datacard, MEI, VeriFone and more. We provide matching consumables and replacement parts for the Fujitsu F53/F56 dispenser, realizing one-stop procurement and saving your time and cost of multi-channel sourcing.

Factory Strength & Customization Service

We have our own professional production factory with independent mold opening and R&D capabilities. We provide custom part manufacturing service for non-standard cash handling equipment, and can customize core components and spare parts according to your equipment design and application needs.

Efficient Supply Chain & Reliable After-sales
  • Low MOQ: Support single piece order, no minimum purchase limit
  • Large In-stock Inventory: A large number of Fujitsu F53/F56 dispensers and consumables in stock, fast delivery
  • 100% Pre-shipment Testing: All modules and electronic products are strictly tested by our professional engineers before delivery to ensure product performance
  • Guaranteed Delivery: Fast logistics arrangement, stable delivery cycle, global shipping support
  • Standard Warranty: All products enjoy a 90-day warranty for worry-free use
About Tiger Spare Parts Co., Ltd.

Tiger Spare Parts Co., Ltd. is a professional global supplier of cash handling equipment and spare parts, focusing on the B2B field of financial and retail self-service equipment. With a complete product system, strong factory manufacturing capabilities and a perfect supply chain, we serve customers in more than 50 countries and regions around the world. We are committed to providing high-quality, cost-effective cash handling solutions and fast, professional after-sales service for financial institutions, retail enterprises and public service operators.

Contact Us

If you have any questions about product specifications, inventory, customization or shipping, please contact our sales team at any time. We will provide you with professional one-to-one solutions and quotation services!

KD03235-B334 KD03235-C324 Fujitsu ATM Bank Machine F53 F56 Dispenser With 1K Cassette 2 KD03235-B334 KD03235-C324 Fujitsu ATM Bank Machine F53 F56 Dispenser With 1K Cassette 3
Available Accessories

We can provide the accessories for the Fujitsu F53 / F56 Dispenser:

Part Number Part Number
KD03234-C001 KD03150-C200
KD03234-C200 KD02881-C100
KD03235-C002 KD02881-C101
K003235-C003 KD02881-C160
KD03235-C102 KD02881-C140
KD03235-C004 K002881-C120
KD03235-C005 KD02881-C011
KD03236-C002 KD02881-C300
KD03234-C011 KD02881-C500
KD03234-C500 KD03150-C001
KD03234-C900 More...
