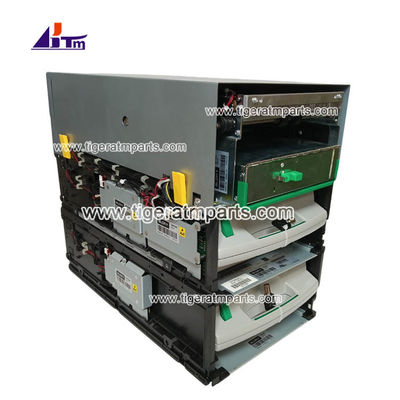

Glory Triton NMD Note Qualifier NQ 100 NMD50 Dispenser ATM Component

Glory Triton NMD Note Qualifier NQ 100 NMD50 Dispenser ATM Component
Glory Triton NMD Note Qualifier NQ 100 NMD50 Dispenser ATM Component Glory Triton NMD Note Qualifier NQ 100 NMD50 Dispenser ATM Component

大画像 :  Glory Triton NMD Note Qualifier NQ 100 NMD50 Dispenser ATM Component

商品の詳細:
起源の場所: 中国
ブランド名: Glory NMD Triton Delarue Talaris
証明: ISO9001
モデル番号: NQ100
お支払配送条件:
最小注文数量: 1個
価格: 交渉可能
パッケージの詳細: カートン/パレット
受渡し時間: ご注文の数量により異なります
支払条件: T/T
供給の能力: 年間100000ユニット

Glory Triton NMD Note Qualifier NQ 100 NMD50 Dispenser ATM Component

説明
モデル番号: NQ100 製品名: ノート修飾子 NQ 100
用途: Glory NMD (メモおよびメディア ディスペンサー) 50 および NMD 100 シリーズ ブランド: グローリー NMD トリトン デラルー タラリス
タイプ: ATM スペアパーツ - ノートクオリファイアー 状態: 新しい
ハイライト:

Glory Triton NMD ATM dispenser component

,

NQ 100 NMD50 ATM note qualifier

,

Glory ATM parts with warranty

Glory Triton NMD Note Qualifier NQ 100 NMD50 Dispenser ATM Component

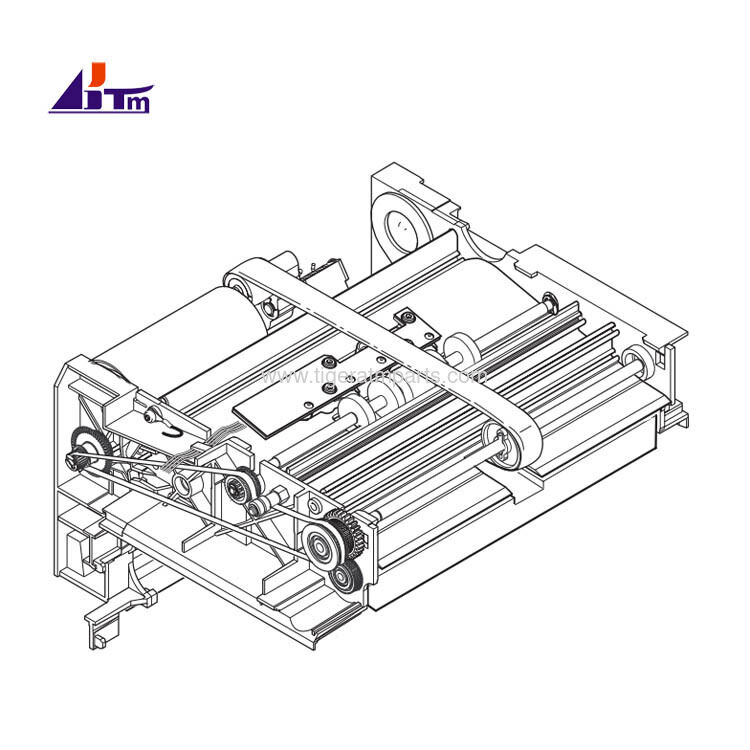

The NMD50 dispenser Note Qualifier (NQ 100) is a critical internal component of the Glory NMD (Notes and Media Dispenser) 50 and NMD 100 series, primarily utilized in ATM systems. This component is responsible for transporting banknotes through the machine while detecting specific characteristics to ensure accurate and reliable dispensing operations.
Key Functions of the Note Qualifier (NQ 100)
  • Note Transport: Contains the main motor and drive system that moves banknotes throughout the entire dispenser mechanism
  • Double Detection: Incorporates Intelligent Double Detection (IDD) system, a proprietary Glory technology that accurately identifies if two notes are fed together, even when degraded
  • Note Qualification: Utilizes sensors to count and verify notes, determining if they meet required fitness criteria for transactions. Failed notes are automatically diverted to a separate reject vault
  • System Integration: Works seamlessly with other modules including the Note Feeder Unit (NFU) and Note Diverter (ND), all controlled by the Central Machine Controller (CMC)
The "100" designation in NQ 100 indicates compatibility with the NMD 100 model, which represents a higher-capacity, modular dispenser system compared to the NMD 50. The NQ unit itself is commonly interchangeable between both models.
Glory Triton NMD Note Qualifier NQ 100 NMD50 Dispenser ATM Component 0
Compatible Parts List
Part No. Description
A002376Gable left
A002375Gable right
A002880Inner Guide
A002879Outer guide assy
A001501Drive shaft assy
A001625DD shaft assy
A001508Pulse disc
A001523Prism shaft assy
A002802Screw, PT DG 40x16
A001532Shaft assy
A001511Bearing
6960407C-clip, RS 5
A001509Shaft
A001479Bearing
6960405C-clip, RS 3.2
A001526Belt
A001531Inner guide assy
A002583Shaft ND wheel
A001468Bearing
A001469Gear
A005937Pin
A001506Pulley timing belt
6960406C-clip, RS 4
A001545Pulley assy
A004747Flange
A004779Belt
A002762Belt
A001458Outer guide assy
6957214Screw M4X8
A001494Shaft
A003017Screw M40X20
A003263CMC shaft encoder
A003466PC board assy.
A006836Label NQ 100
A006848Label field rev.
A003024Holder Assy.
A003024Holder assy
A004824Motor with filter
A004849Flange
6957103Screw, MRT 3x6
A002675Belt
A007367Separation mechanism roller
A005054Holder
A004752Photo transistor
A005876Diode
A003924NF separation motor
A002677Leaf spring
A004293Pressure sensor board
A005170Empty sensor board
A007451Pick roller assy
A002680Belt
A001498Roller 16
A004497Cable, NFC-NF
6580001Strap, harness
0403268Tube
A007331Washer
A007346Screw, MRT 2x5
A001630Bearing
A003470Inner guide
A003493Spring
A004812Shaft
A001499Roller
6960117Washer
A004267Cover CRR
6960405C-clip, RS 3.2
A003513Pin, CP 1x5
6960404C-clip, RS 2.3
A001615Gear
A001479Bearing
A001616Belt
A004201Guide
A003476Damper
6960129Washer
A002948Pin
A002678Clutch
A001583Roller
A002952Bearing
A004538Rubber
A002679Shaft
A001584Washer
A002951Clutch
A001593Bearing
A004702Pulley
A004315Spacer
A004701Pulley
A002928Clutch
A002683Rubber
A001589Wheel
A002709Cover
A002676Shaft
Why Choose Our Factory?
  • Brand-Compatible ATM Parts Supply – For Diebold Nixdorf (Wincor), NCR, Hyosung, Fujitsu, Hitachi, GRG, NMD (DeLaRue/Talaris/Glory), OKI, Triton, Genmega, and more
  • Custom ATM Parts Manufacturing – Tailored to customer specifications and requirements
  • Comprehensive Component Sales – New, original, refurbished & used ATM parts and equipment
  • Parts & Module Repair/Refurbishment – Professional maintenance services to extend equipment lifespan
  • ATM Upgrade Solutions – Boost performance, compatibility, and functionality of existing systems
  • Technical Support – Consultation and training for maintenance and optimization of ATM systems
